Inverex Nitrox 10KW-48V Hybrid Solar inverter (Single phase) PV 16000W
Expected Delivery on - .
DETAILS
Power Your World — Smarter, Cleaner, Longer
The Inverex NITROX Hybrid 10KW SP-5G is engineered for those who demand more from their energy system. Whether you're powering a modern home, a busy office, or a demanding industrial facility, this inverter delivers uncompromising performance — day and night, on-grid or off.
With a massive 16,000W PV input capacity, industry-leading 97.6% efficiency, and seamless hybrid operation, the NITROX SP-5G is your gateway to true energy independence.
✦ Why Choose the NITROX 10KW SP-5G?
- Hybrid Flexibility — Operates seamlessly in both grid-tied and off-grid modes, giving you uninterrupted power regardless of grid availability.
- Maximum Solar Harvest — 16,000W PV input with advanced MPPT technology (>99% efficiency) ensures every ray of sunlight is captured and converted.
- Universal Battery Support — Compatible with both lithium-ion and lead-acid batteries, with intelligent BMS self-adaptation for lithium packs.
- Smart Connectivity — Monitor and control your system remotely via GPRS, Wi-Fi, Bluetooth, 4G, or LAN from anywhere in the world.
- Built to Last — IP65-rated enclosure, intelligent air cooling, and TYPE II surge protection (DC & AC) ensure reliable operation in even the harshest environments.
- Whisper Quiet — Operates at under 30 dB, making it ideal for residential installations.
- 5-Year Warranty — Backed by a comprehensive warranty for complete peace of mind.

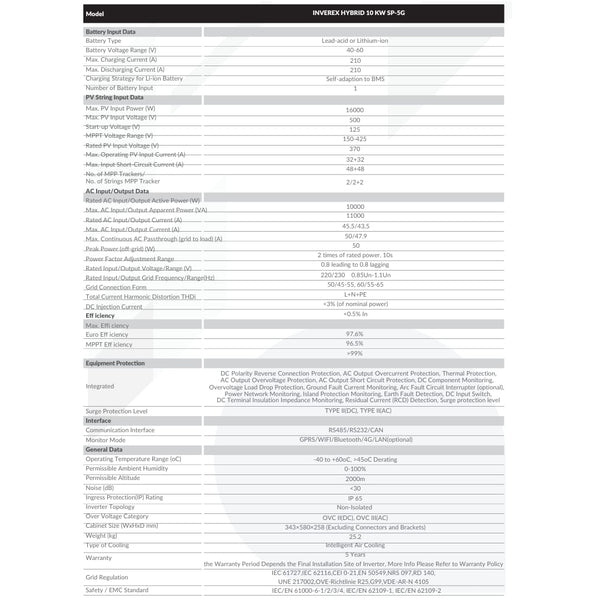

✦ Technical Specifications
| Category | Specification |
|---|---|
| Rated AC Power | 10,000W |
| Max. Apparent Power | 11,000 VA |
| Max. PV Input Power | 16,000W |
| Max. PV Input Voltage | 500V |
| MPPT Voltage Range | 150V – 425V |
| Max. MPPT Efficiency | >99% |
| Max. System Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| Battery Type | Lead-Acid / Lithium-Ion |
| Battery Voltage Range | 40V – 60V |
| Max. Charging / Discharging Current | 210A / 210A |
| Rated AC Input/Output Current | 50A / 47.9A |
| Peak Power (Off-Grid) | 2× Rated Power (10s) |
| THD (Current) | <3% |
| Surge Protection | TYPE II (DC & AC) |
| IP Rating | IP65 |
| Operating Temperature | -40°C to +60°C (derating above 45°C) |
| Noise Level | <30 dB |
| Cooling | Intelligent Air Cooling |
| Communication | RS485 / RS232 / CAN |
| Monitoring | GPRS / Wi-Fi / Bluetooth / 4G / LAN |
| Grid Connection | L + N + PE |
| Rated Voltage / Range | 220/230V (0.85Un – 1.1Un) |
| Grid Frequency | 50Hz (45–55) / 60Hz (55–65) |
| Dimensions (W×H×D) | 343 × 580 × 258 mm |
| Weight | 25.2 kg |
| Warranty | 5 Years |
| Certifications | IEC 61727, IEC 62116, CEI 0-21, EN 50549 |
The Inverex NITROX 10KW SP-5G — where cutting-edge solar technology meets real-world reliability. Invest in energy independence today.
